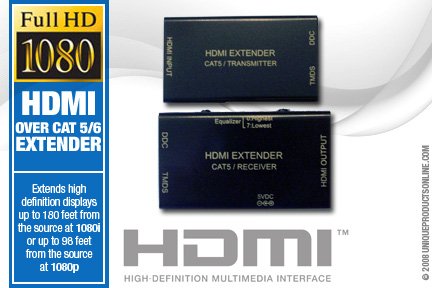

HDMI over Cat 5 / Cat 6 Extender Balun

HDMI over Cat 5 / Cat 6 Extender Balun Review

HDMI over Cat 5 / Cat 6 Extender Balun Feature

• Use our Cat-5e extender to substituted a HDMI cable to achieve long distance transmissions.
• Extend up to 30 meters / 98 feet at 1080p at 60Hz
• Extend up to 55 meters / 180 feet at 1080i at 60Hz
• HDMI is Great. However one big issue HDMI faces is distance. Our Cat 5 Converters address this issue.
• Please note - Two CAT-5* cables (not included) connect the sender and the receiver units to each other.

How it works Your output device that has the HDMI connector (Cable box, Satellite receiver, DVD player) plugs into the INPUT of the HDMI Transmitter with a HDMI cable. Then you plug 2 Cat 5e cables into the HDMI transmitter and run your cat 5e cables to the HDMI Receiver Your HDM Receiver then hooks up via HDMI cable to your HDMI input on your HDTV display. Plug the AC adapter (included) into the Receiver. Its that easy. Please note - Two CAT-5* cables (not included) connect the sender and the receiver units to each other. For distances over 100 feet, shielded CAT-5e or CAT 6 cables are recommended for optimal video quality. Features and Benefits Extends high definition displays up to 180 feet (55 meters) from the source at 1080i Extends high definition displays up to 98 feet (30 meters) from the source at 1080p Built in equalizer if needed to adjust for cable Specifications Specifications - Video bandwidth 2.25 Gbps (HDMI 1.3a) - Deep Color Support: up to 12 bit - HDMI compliant - HDCP compliant - Input TMDS signal: 1.2Volts (peak to peak) - Input DDC Signal: 5 Volts (peak to peak) - HDMI connector 19 Pin type female connector - RJ- 45 connectors: 2 on TX and 2 on RX Package includes: -HDMI CAT-5 sender unit -HDMI CAT-5 receiver unit -One ac adapter
